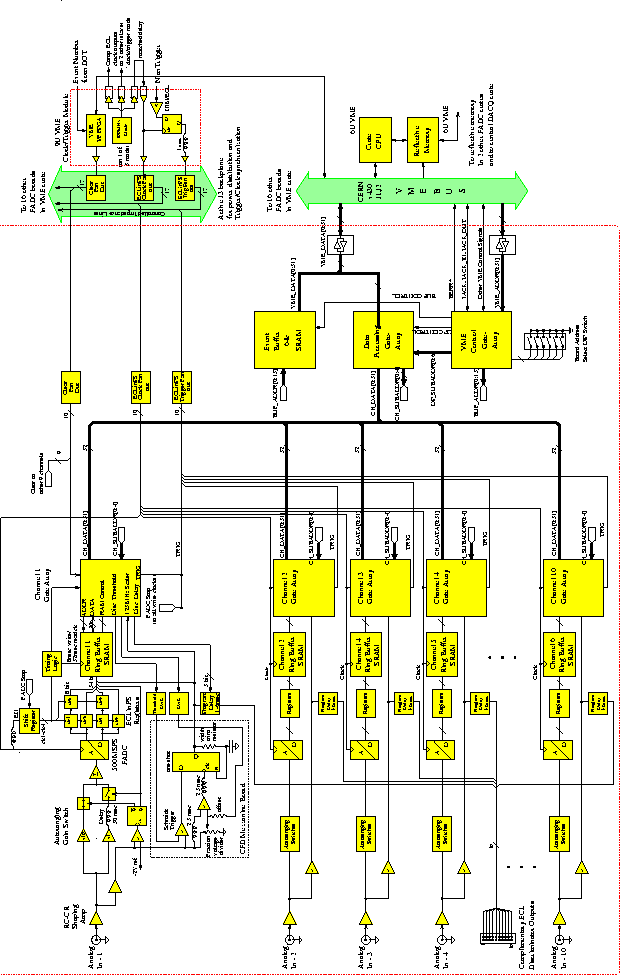

Figure 8 shows a simplified schematic of one FADC/CFD board, and indicates how 17 of these boards are integrated with other electronics into one of the three crates which make up the complete FADC system for one telescope.
